UCFB209 - 3-Bolt Flange Bracket Mounted Ball Bearing, 1.772" Bore (ID), Insert Bearing: UC209, Housing: FB209

UCFB209 - 3-Bolt Flange Bracket Mounted Ball Bearing, 1.772" Bore (ID), Insert Bearing: UC209, Housing: FB209

UCFB209

$40.99 USD
$40.99 USD
Sale Sold out

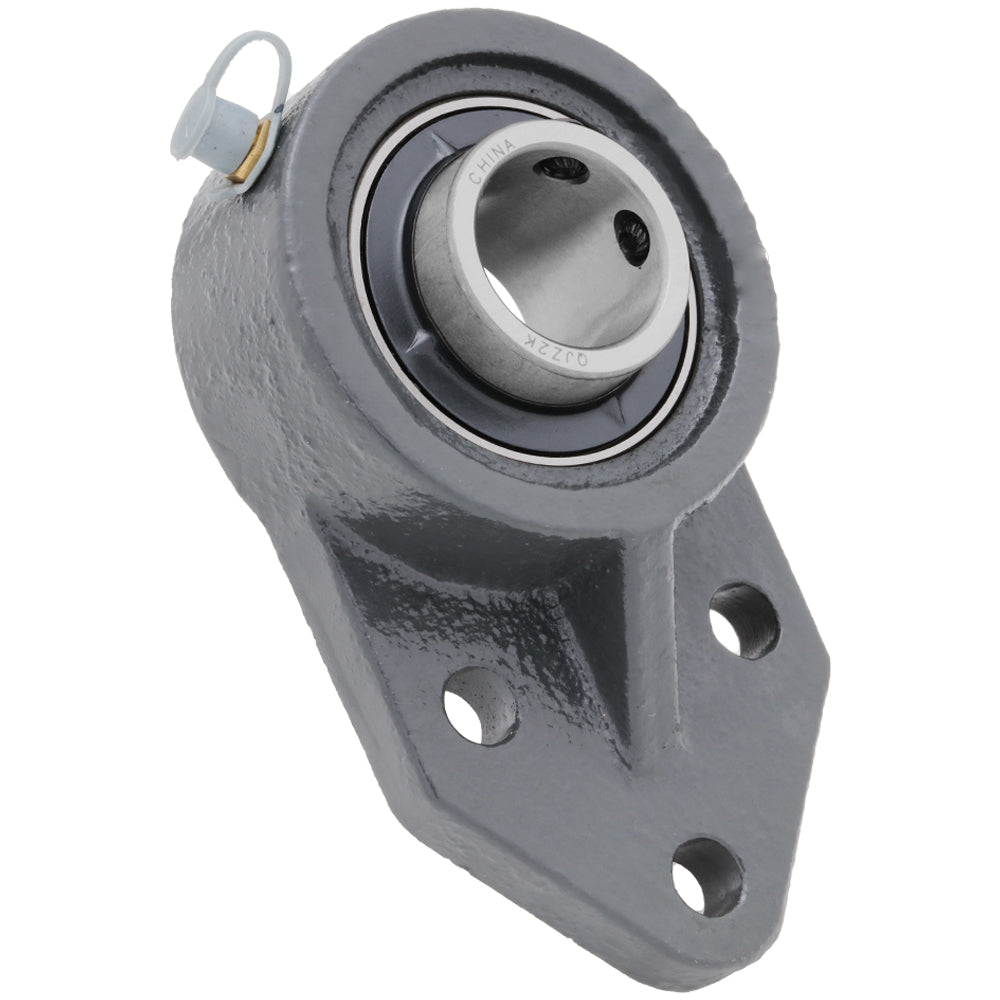

3-Bolt Flange Bracket Mounted Unit Bearing

The UC series 3-bolt mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC209) and housing(FB209) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFB209
Shaft Bore (ID) 1.772 in | 45 mm
Length 6.89 in | 175 mm
Height 2.055 in | 52.197 mm
Width 4.252 in | 108 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery

Out of stock

View full details
